Finite Element Analysis

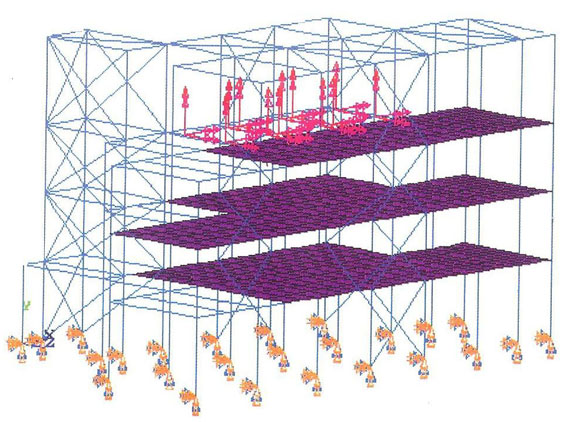

The pictures show a dynamic analysis using a finite element model of a steel framed building subjected to dynamic loads from centrifuges mounted on the third floor.
![](projects/fem3.jpg)

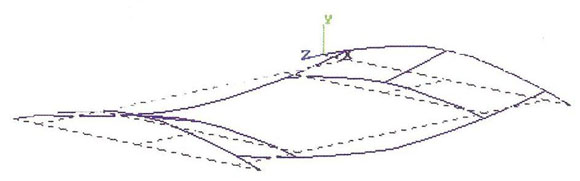

Finite Element Analysis
![](projects/fem1.jpg)

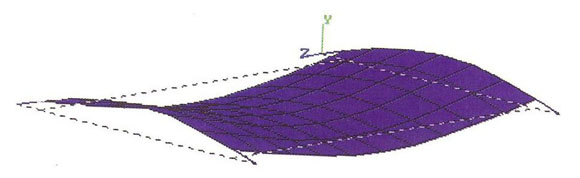

Modal analysis of steel grillage
![](projects/fem2.jpg)
